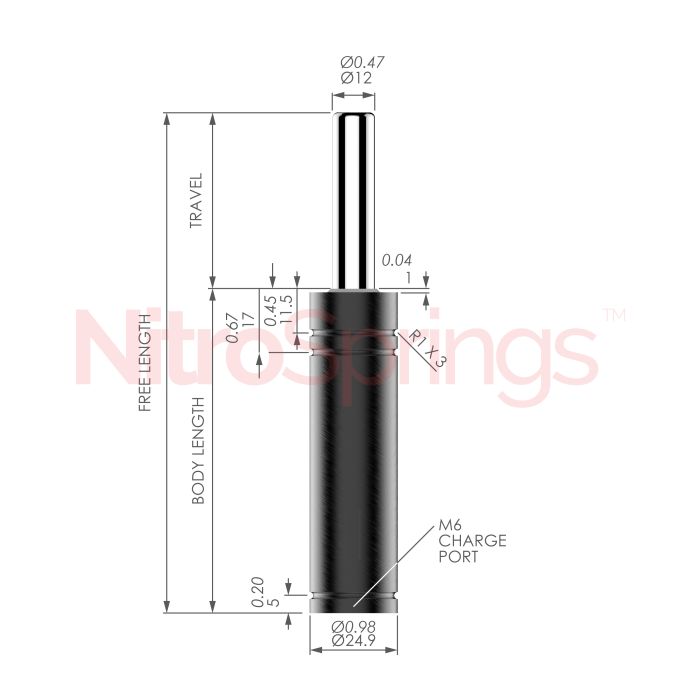

0.98x9.65 3.94in travel mini compression spring
Product Enquiry
-
Product codeProduct Description
- NG1-XXX-1000.98x9.65 3.94in travel mini compression spring
| Outside Dia. | 0.98in |
|---|---|
| Piston Dia. | 0.47in |
| Travel | 3.94in |
| Body Length | 5.71in |
| Free Length | 9.65in |
| Mounting Options | Drop-in Pocket, End Support, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6x1 |
| Tapped Hole Depth | 0.20in |
| Certification | ISO 9001:2015, PED 2014/68/EU |
