0.98x5.51 1.26in travel with a force range of 4250N - 7900N
Product Enquiry
-
Product codeProduct Description
- HDG0042-320.98x5.51 1.26in travel with a force range of 4250N - 7900N

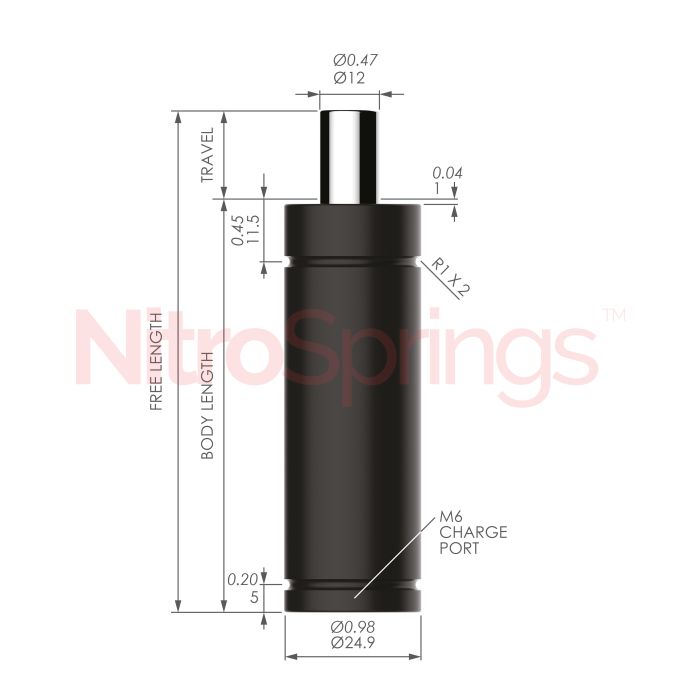

| Outside Dia. | 0.98in |
|---|---|
| Piston Dia. | 0.47in |
| Travel | 1.26in |
| Body Length | 4.25in |
| Free Length | 5.51in |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6x1 |
| Tapped Hole Depth | 0.63in |
| Certification | ISO 9001:2015, PED 2014/68/EU |
